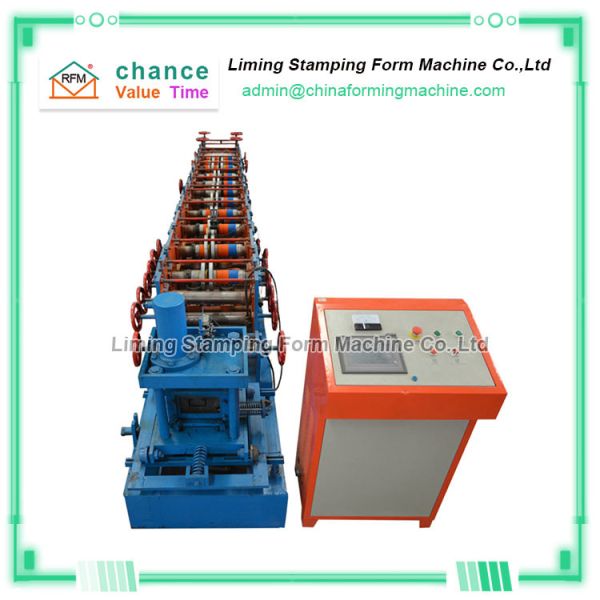

Hot Dip Galvanized C Shaped Purlin Steel Roll Forming Machine
Advantages of "Hot dip galvanized C shaped purlin steel roll forming machine"
1. "Hot dip galvanized C shaped purlin steel roll forming machine" is controlled by PLC, and multiple safety protection measures are set up during the normal production process.
2. "Hot dip galvanized C shaped purlin steel roll forming machine" bed is steel welded parts. And tempered to eliminate internal stress and avoid body deformation.
3."Hot dip galvanized C shaped purlin steel roll forming machine" forming frame is cast iron structure and tempered. High strength and long service life.
4."Hot dip galvanized C shaped purlin steel roll forming machine" roller is made of 40Cr, and the hardness after quenching and tempering is HB280.
5."Hot dip galvanized C shaped purlin steel roll forming machine" adopts external adjustment form, single-sided adjustment, fast adjustment speed and simple operation. It adopts external adjustment form, single-sided adjustment, fast adjustment speed and simple operation.
Technical parameters of Hot Dip Galvanized C Shaped Purlin Steel Roll Forming Machine
1. Machine Components
1) Manual decoiler or hydraulic decoiler which base on customer
2) Feeding and leveling section
3) Main roll forming system
4) Hydraulic punching and cutting(Pre punching or post punching base on customer)
5) Product support frame
6) PLC Control System
main motor type: phase asynchronous motor(manufacturer: Shanghai Nanyang)
main motor power: 15kw*2= total 30KW
speed of forming:15-25m/min
material of roller : GCr15
18 groups rollers
material of main shaft : 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming
diameter of main shaft: ø70mm
punching Type: Hydraulic Punching
Punching material: Cr12
Punching die: Cr12
Cutting type: Hydraulic cutting ,pre or post cutting
Cutting material: Cr12
Hydraulic motor power: 5.5KW
Voltage: 380V, 3 Phase 50Hz or base on customer
Automatic change the C Purline to Z Purline easy to operate,the size of the C or Z purline which change automatically by PLC
Product Tags:
|
|

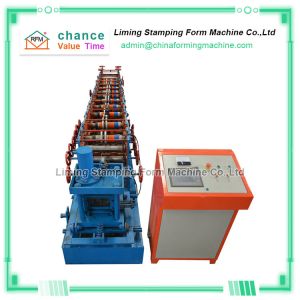

Hot Dip Galvanized C Channel Roll Forming Machine 380V Images
|
