High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine

Name: High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine
Brand: LIMING
Price: 1 USD

Brand Name : LIMING

Model Number : LM-purlin7

Certification : CE、BV、ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 450set/Year

Delivery Time : 30 work days

Packaging Details : Nude、Anti-dust film, Anti-rust cloth

Applicable Industries : Building Material Shops, Farms, Construction works

Voltage : 380/220/415v customized

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Warranty of core components : 2 years

Product name : High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine

Control system : Automatic /human interface control

Dimension(L*W*H) : 9.5*1.5*1.4M

Contact Now

High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine

"High quality stainless steel C shaped purlin steel roll forming machine" adopts automatic fixed-length cutting, automatic punching and other methods, with high automation and quick and convenient installation.

"High quality stainless steel C shaped purlin steel roll forming machine" is a single-roll forming unit that can produce C shaped purlin units of various specifications.

"High quality stainless steel C shaped purlin steel roll forming machine" is 9 meters long, 1.1 meters wide, and 1.6 meters high; the net weight is 6 tons.

The frame of the "High quality stainless steel C shaped purlin steel roll forming machine" is made of 350H steel, the main shaft is made of 45# round steel, and the wheels are made of bearing steel and have been quenched and tempered.

Technical parameters of High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine

1	Profile Size	100-300
2	Suitable Raw Material	0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3	Under Frame	400 H-beam
4	Sidewall	20mm
5	Connect Bar	25mm, zinc plated
6	Roller	Gcr15, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7	Shaft	80mm, solid, finish turning, cylindrical grinding, with keyway
8	Forming Stations	15
9	PLC	DELTA, TAIWAN
10	Main Motor	15kw, Lichao, Shanghai, with reducer
11	Hydraulic Pump station	5.5 kw
12	Cutting blade	Cr12Mov, quenching 58-62°, double oil cylinder
13	Oil paint	National standard grey
14	Computer screen	DELTA, TAIWAN
15	Chain	double 2inch

Quality High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine wholesale

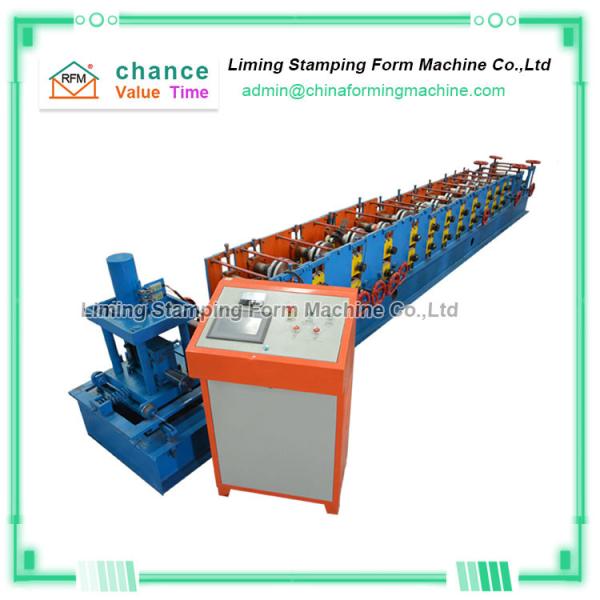

High Quality Stainless Steel C Shaped Purlin Steel Roll Forming Machine Images
