625mm Cladding Wall Ceiling Panel Roll Forming Machine
Compared with traditional exterior wall insulation and decorative building materials, the metal exterior wall panels produced by the "625mm cladding wall ceiling panel roll forming machine " have excellent cold resistance and thermal insulation properties, and show absolute advantages in terms of external wall insulation and heat insulation. Decoration materials.
The installation method of "625mm cladding wall ceiling panel roll forming machine " adopts the keel dry hanging method
The metal exterior wall panels produced by the "625mm cladding wall ceiling panel roll forming machine " have the characteristics of heat preservation and heat insulation, waterproof and flame retardant, light and shockproof, sound insulation and noise reduction, green and environmental protection, beautiful and durable. And self-cleaning.
The emergence of "625mm cladding wall ceiling panel roll forming machine " will completely change the common problems of residential quality, such as peeling, permeability, cold, mold and wall cracks on tiles, stone, cement and other walls.
Main parameters of 625mm Cladding Wall Ceiling Panel Roll Forming Machine
| Roll forming machine name | 625mm cladding wall ceiling panel roll forming machine |
| Brand of plc | Delta |
| Material of rollers | High grade 45# steel with 0.05mm chormed |
| Material of shafts | Soild high grade 45# steel |
| Diameter of shaft | 60mm |
| Material of blade | Cr12 ateel |
| Transmission | Chain |
| Motor voltage | 380V 50Hz 3P or customized |
| Motor kw | 4kw |
| Cutter system | Automatic Hydraulic cutter system |
| Hydraulic pump kw | 3 kw |
| Machine base frame | Steel channel welding with four supported legs |
| Raw material | ppgi |
| Thickness of raw material | 0.3-0.6mm |
Product Tags:
|
|

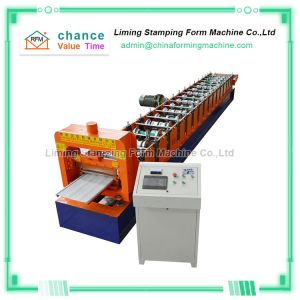

625mm Cladding Panel Roll Former for building materials Images
|
